SYSTEM
System’s Acoustic Principle	Band-pass / bass-reflex
Frequency Response (-6dB)	34 Hz – 180 Hz (Processed)
Maximum (peak) SPL	132dB SPL @ 1m

TRANSDUCERS
Type	21″ Neodymium magnet woofer, 4″ (100mm) VC
Cone	High stiffness (Complex Composite), water repellent
Voice Coil Type	Interleaved Sandwich Voice coil (ISV)
Suspension	Triple-roll

ELECTRICAL
Input Impedance	20 kΩ balanced, 10 kΩ unbalanced
Input Sensitivity	+4dBu / 1.25 V
Signal Processing	CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
Direct access Controls	4 Presets (2 x AX12C / 4 x AX12C / 1 x AX12C / User), Network Termination, GND Link
Remote Controls	PRONET control software
Network protocol	CANBUS
Amplifier Type	Class D with SMPS and PFC, Variable Switching Frequency
Output Power	2000W + 2000W (Out1: SW2100 – Out2: AX12C or other AXIOM loudspeakers)
Mains Voltage Range (Vac)	90 – 260V 50/60Hz
IN / OUT Connectors	Neutrik XLR-M / XLR-F
IN / OUT Network Connectors	ETHERCON®(NE8FAV)
Mains Input and Link Connector	PowerCon® TRUE 1 (NAC3PX)
Cooling	Variable speed DC fan

ENCLOSURE & CONSTRUCTION
Dimensions (W x H x D)	760 mm (29.9”) x 511 mm (20.1”) x 770 mm (30.3”)
Depth Including Wheels	881 mm (34.6”)
Enclosure Material	18mm, reinforced phenolic birch
Paint	High resistance, water based paint
Transport	4 x heavy duty 100mm (4”) castors, 4 handles
Net Weight	61 Kg (134.2 lbs.)

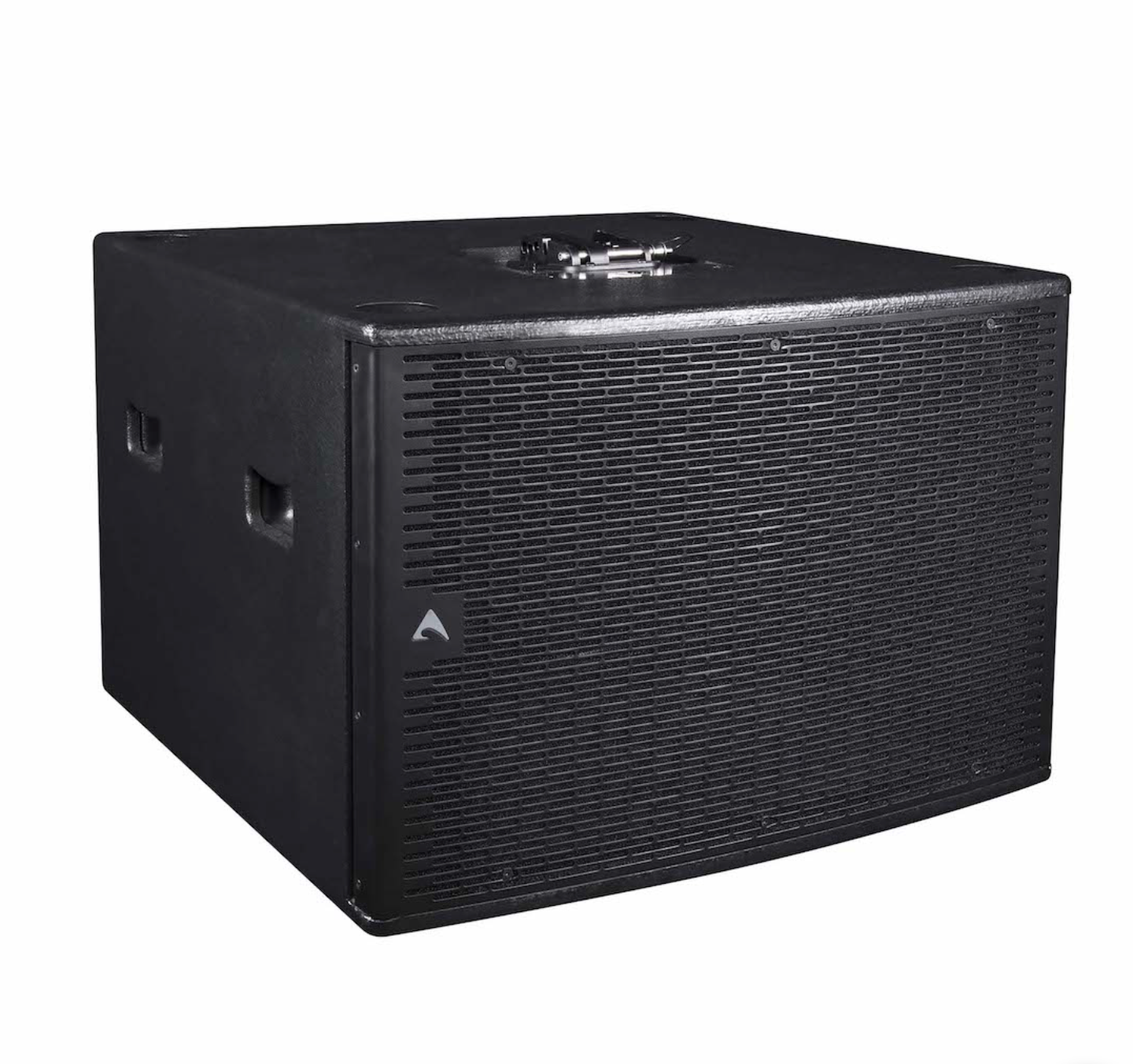

Sub Woofer Activo AXIOM 21″ 2000w + 2000w – SW2100A – AXIOM
