| SYSTEM | |
| System’s Acoustic Principle | Line Array Element |
| Short Transmission Line Back Loading | |
| Acoustic Diffractor | |
| Frequency Response (-6dB) | 180 Hz – 16 KHz (Processed) |
| Nominal Impedance | 16 Ohm |
| Horizontal Coverage Angle | 100° |
| Sensitivity (4V) | 105 dB SPL @ 1m* |
| Maximum (peak) SPL | 130 dB SPL @ 1m* |
| TRANSDUCERS | |

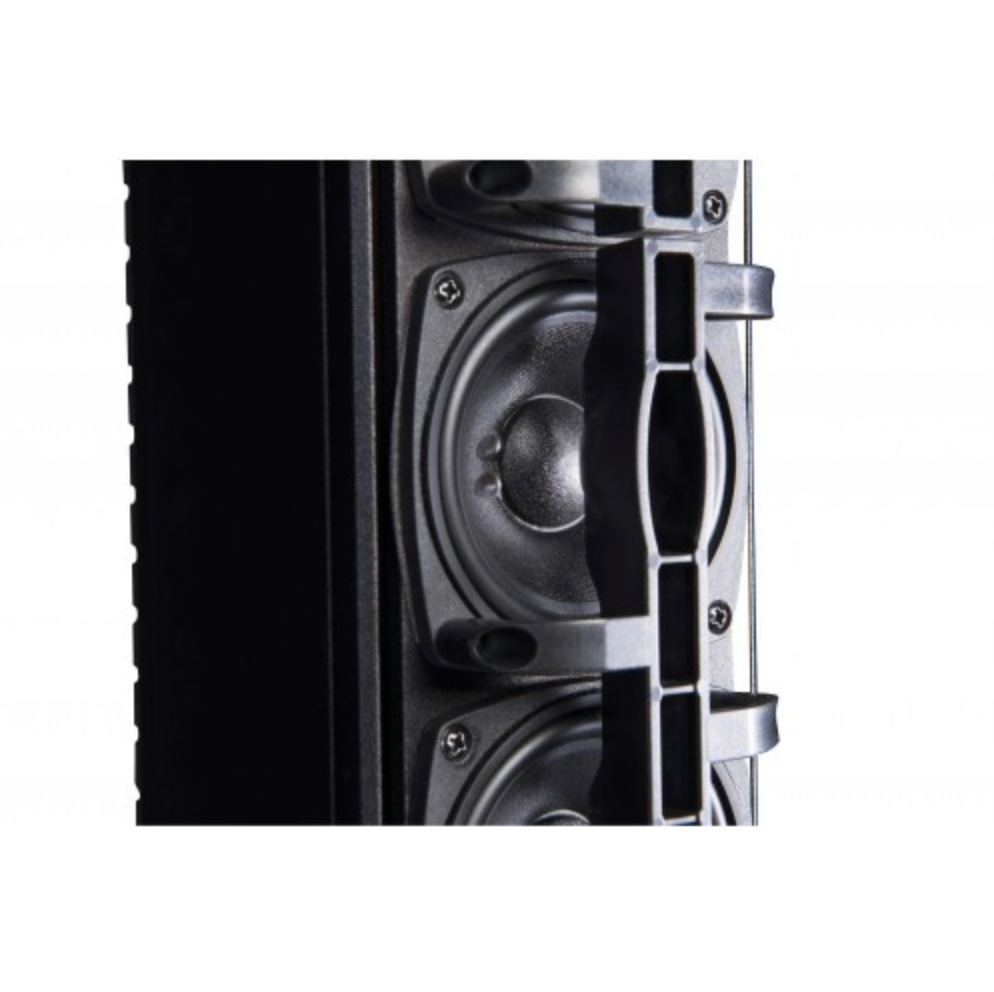

| Type | 12 x 3.5″ (88mm) Neodymium magnet woofers, 1″ (25mm) VC |
| Cone | Waterproof Cone |
| Voice Coil Type | Ventilated voice coil |
| INPUT CONNECTIONS | |
| Connector Type | Neutrik® Speakon® NL4 x 2 (1+/1- signal IN & LINK ; 2+/2- thru) |
| POWER HANDLING | |
| Continuous AES Pink Noise Power | 360 W |
| Program Power | 720 W |
| ENCLOSURE & CONSTRUCTION | |
| Width | 107 mm (4.2″) |
| Height | 1166 mm (45.9″) – without flying system |
| 1212 mm (47.7″) – with flying system | |
| Depth | 193 mm (7.6″) |
| Enclosure Material | Aluminum |
| Finishing | Black anodization, black epoxy paint |

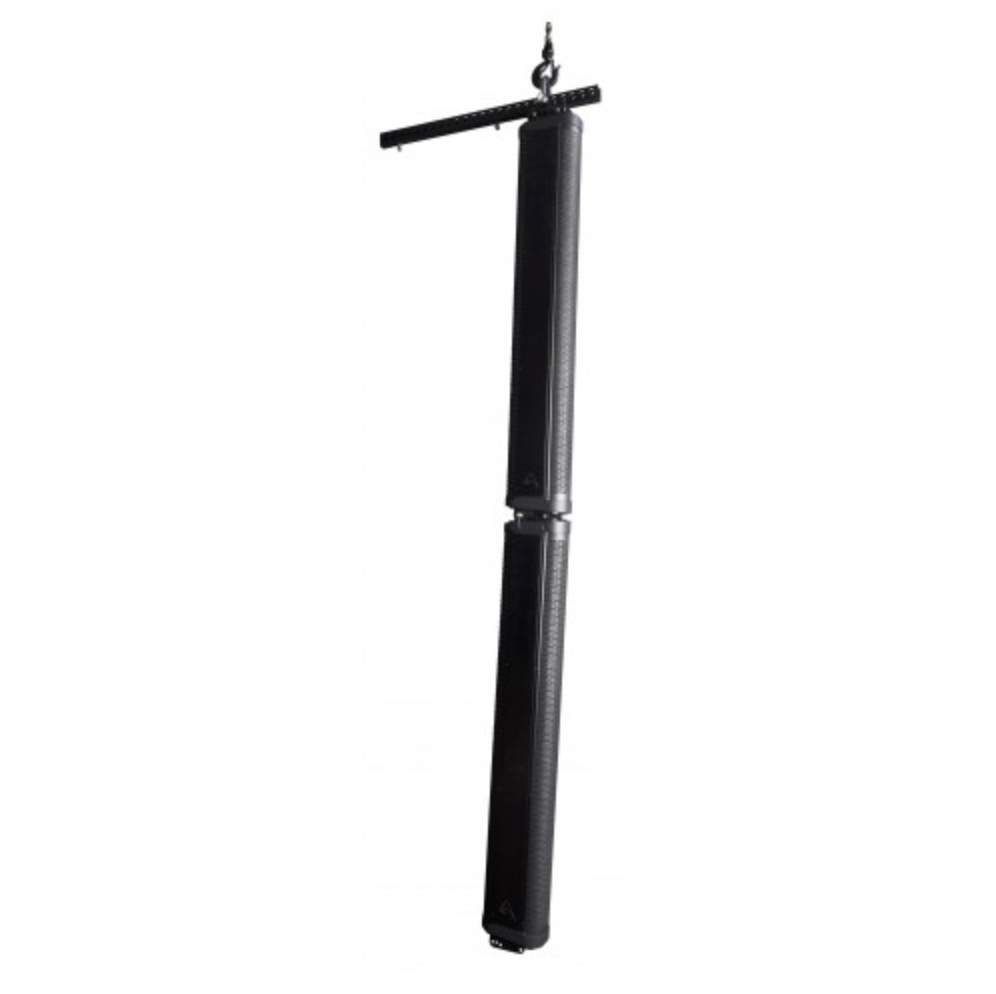

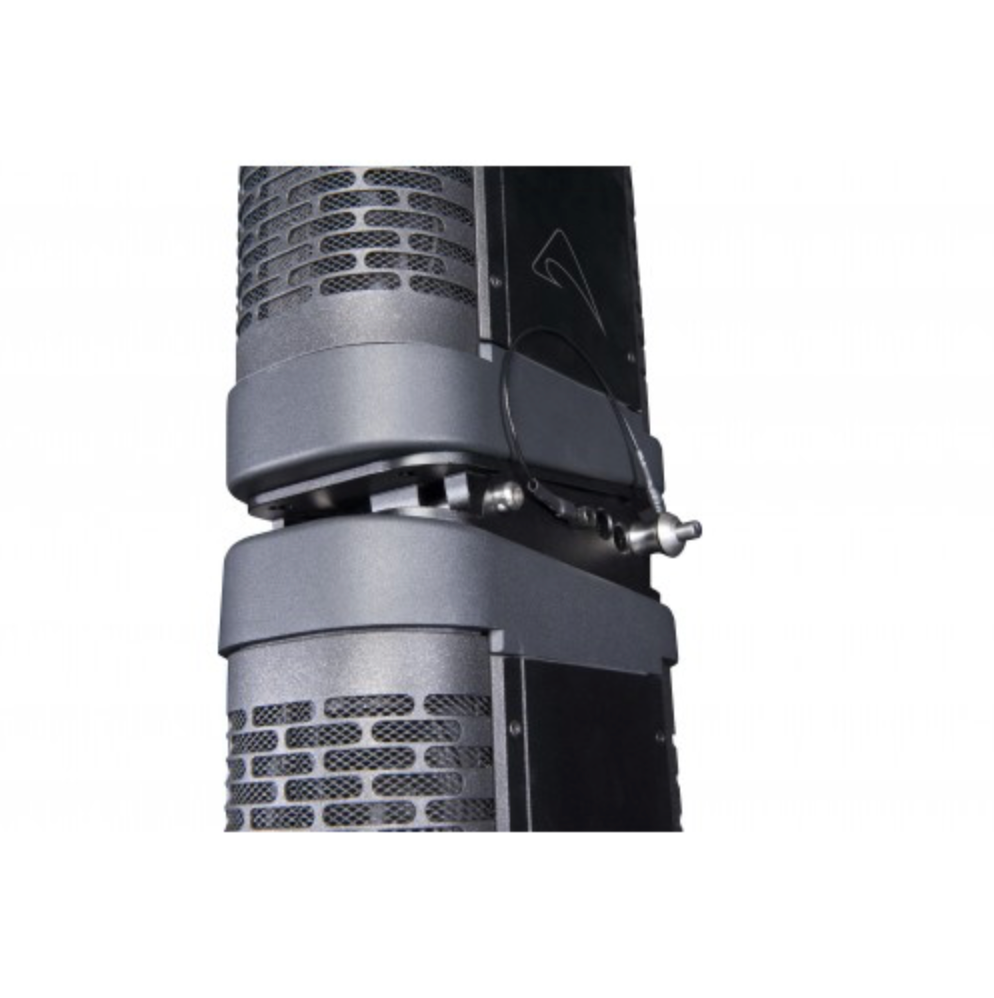

| Flying system | Aluminum Fast Link structure with dedicated pins |
| Net Weight | 13 kg (28.6 lbs.) |
| *measured @4 m and scaled @1 m |
